Double Layer Press BeltsDouble Layer Press Belts

Double Layer Press Belts

    Title: Double Layer BOM felts

    Key words: Double Layer BOM felts


Inquire Now
  • Quick Details
  • Detailed Descriptions
  • Packaging & Delivery
  • Services

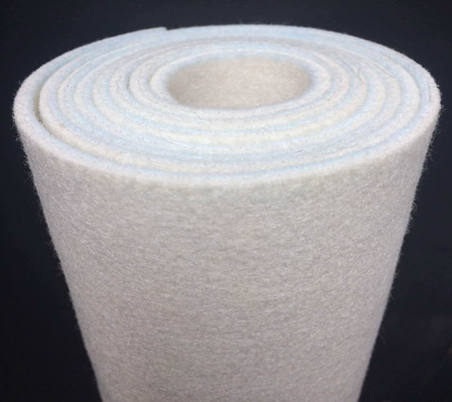

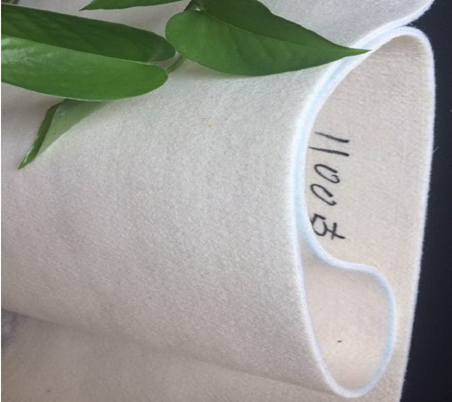

    Double Layer Press Felts include 1+1 composite structure and double layer of MD yarn structure. The 1+1 composite structure consists of two layer base meshes of different thickness. Both of these base meshes can be changed in construction and sizes to suit the requirements of different paper machines. Double layer felts have the features of high press resistance, good flexibility, permeability and size stability, less elongation, excellent tensile strength. The felts are also resistant to vacuum marks, blind hole marks, groove marks etc. Double layer BOM felts are used in press types such as: groove press, vacuum suction press, multi-press, large diameter nip-roll press to produce high grade printing papers, news-prints, technical papers, packaging papers, high grade paper boards etc.


    Double Layer Press Felts

    Paper Grade:≥8g/m2

    NIP:60~200kN/m

    GSM: 950~1450g/m2

    Felt GSM Tolerance:≤±4%

    Air Permeability:30~110cfm

    Tensile Strength:≥3000N/5cm

    Elongation Percentage:≤0.6%

    Width Variation:≤±2cm



    TypeGSMStructureApplication
    47501950~1300double layer meshcorrugating papers, kraft papers, packaging papers
    475021000~1100double layer meshcorrugating papers, kraft papers, packaging papers
    47504900~1100double layer meshcorrugating papers, kraft papers, packaging papers
    475051100~1400double layer meshwriting & printing papers, newsprints, packaging papers, kraft papers
    47521950~1300double layer meshcorrugating papers, kraft papers, packaging papers
    475221000~1100double layer meshkraft papers, papers boards
    475231200~1500double layer meshwriting & printing papers, newsprints, packaging papers, kraft papers
    47524900~1100double layer meshcorrugating papers, kraft papers, packaging papers
    475251200~1500double layer meshbig roll press for high-grade, packaging papers, papers borads

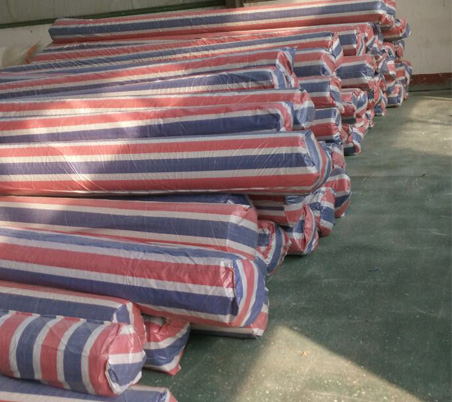

    Packing Detail:

    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.

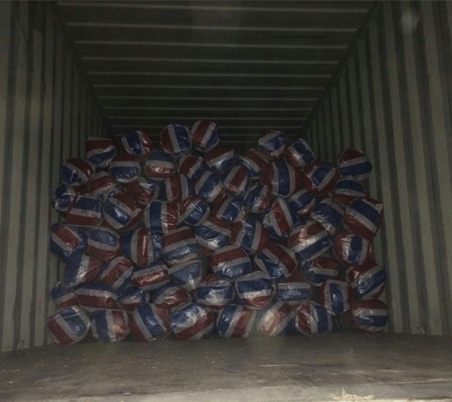

    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.

    3.There also have some customer request us to use the carton to packing their goods.

    4.We can according to customer's requirement.



    Q: How long is your delivery time?

    A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



    Q:Do you provide samples?

    A:Yes, we can provide some of the product samples.

    Its free and freight should be collected by your side.



    Q:How can I know the completion of my order?

    A:Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents

    Double Layer Press Belts

    Double Layer Press Belts


    Q: Could you provide free sample?

    A: Yes, we can provide free sample together with our catalogue. But the freight charge will on your side. We'll refund the freight charge if you make an order.


    Q:How can I know the completion of my order?

    A:Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents
