Title: Sludge Dehydration Fabric (Press-Filter belt) for dewatering machine
Key words: Polyester sludge dewatering mesh

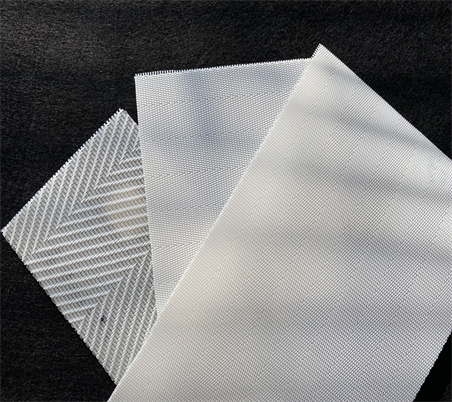

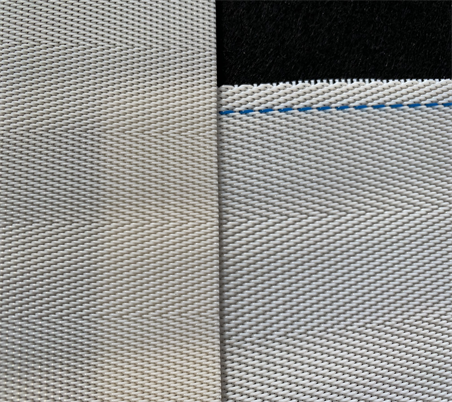

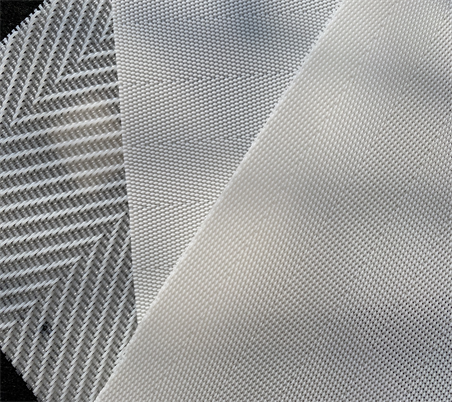

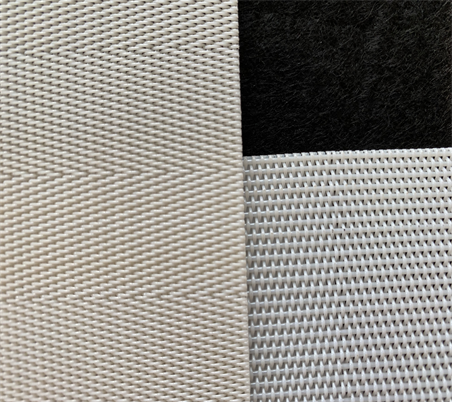

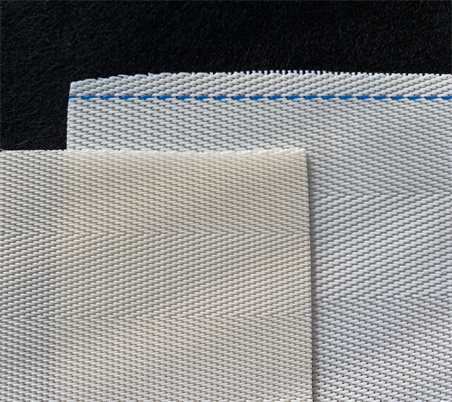

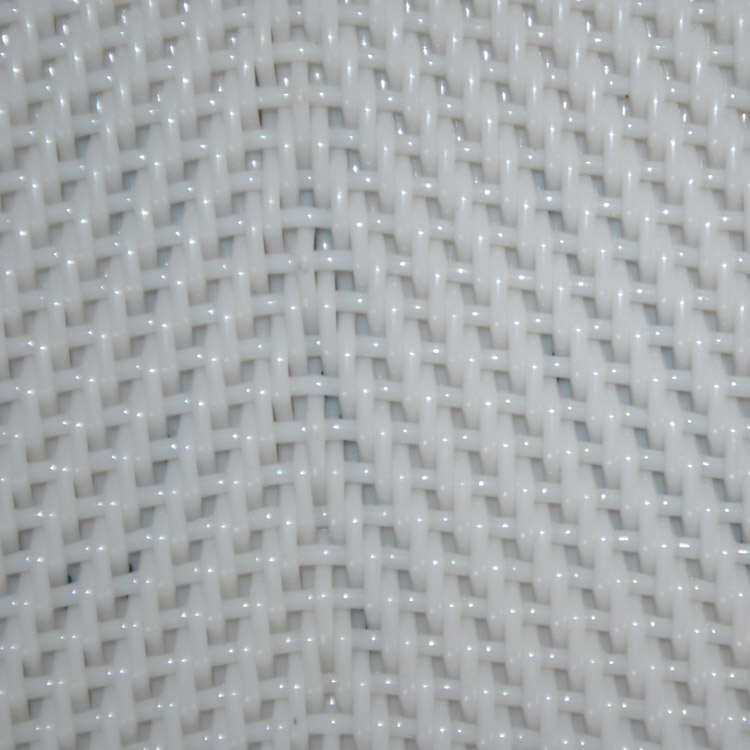

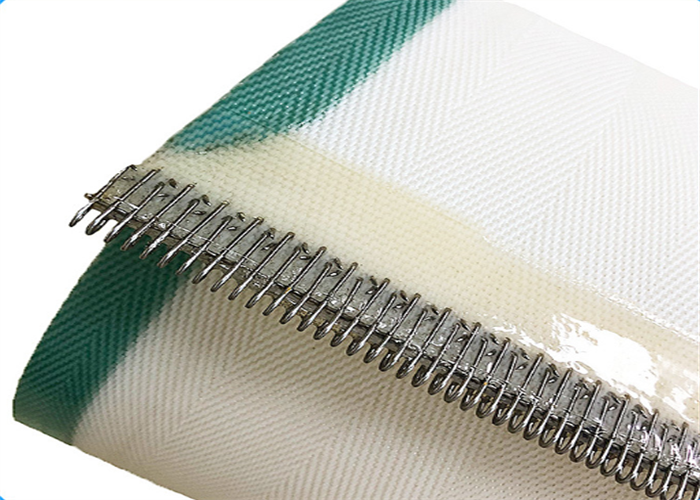

Sludge Dehydration Fabric (Press-Filter Belt) for Dewatering Machine
Sludge Dehydration Fabrics (Press-Filter Fabric Belt) mainly are used for sludge dehydration in sewage treatment factories. They have the characteristicof good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180 C).Because of their designing structure, the sludge can be peel off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time. Therefore they are designed specially for sludge dehydration.
Characteristics and Advantages
Good water permeability
Good air permeability
Acid- resistance, alkali- resistance, temperature resistant
Heat resistance under 180 degrees
Waterproof polyester filter mesh for sludge dehydration with smooth surface mesh, high strength, excellent conduct electricity and saving energy;
Water filterability

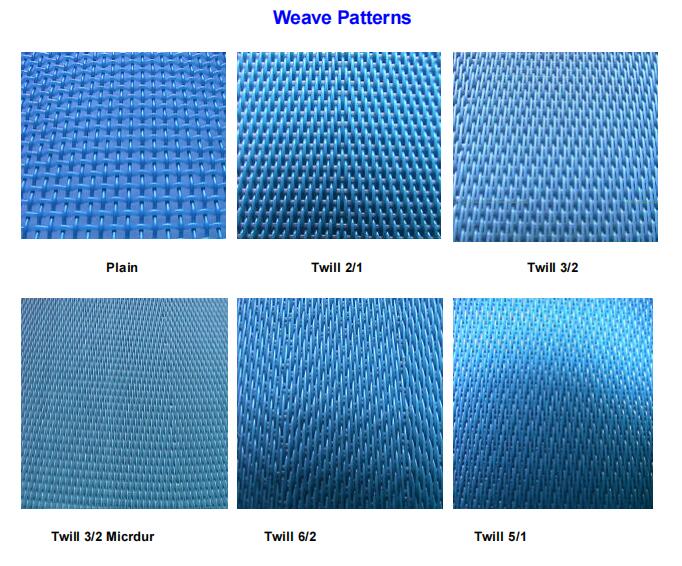

One of the most important functions of polyester Sludge Dewatering fabrics is dehydration.Generally speaking, the size of the dewatering capacity depends on the ratio of the slurry, the beating condition, the auxiliary materials and the model of the paper machine. For the Sludge Dewatering fabrics itself, the dewatering capacity is mainly determined by the weave, structure, thread diameter and weft density of the Sludge Dewatering mesh.
Applications
Polyester synthetic filter mesh screen for dewatering is mainly used for sludge treatment in food processing industry and sewage treatment factories,such as paper making,printing and dying, washer wrinker fabric factory etc. Industries listed below:
- Filtration
- Sludge dewatering
- Industrial draining usage
- Food cleaning and processing
| Type | Filament diameter mm | Density/root cm | Tensile strength | weight kg/m2 | Thickness mm | Air permeability m3/m2h | CFM 127/Pa | |||
| warp | weft | warp | weft | surface | joint | |||||
| 31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 2976 | 186 |
| 26508 | 0.50 | 0.50 | 28 | 18.5 | 1600 | 900 | 1.20 | 1.5 | 2050 | 128 |
| 2470 | 0.50 | 0.70 | 24 | 9 | 1600 | 900 | 1.23 | 1.90 | 7520 | 470 |
| 22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 | 530 |
| 27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 | 306 |
| 26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 | 380 |
| 24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 | 460 |
| 24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 | 430 |
| 16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 | 470 |
| 16903 blue | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3968 | 347/248 |
| 15905 | 0.90 | 0.90 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 7840 | 490 |
| 151105 | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 | 580 |
| 151105 PA/PET | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 | 580 |
| 12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 | 600 |
Product Features:
1.Good air permeability and water permeability
2.Fast delivery time
3.Good yarn
4.lowest prices
5.Good services
The wooden packet with foam plastic packet bag for Sludge Dehydration Fabric (Press-Filter belt) for dewatering machine.
Q1: Can I book Storage Basket from you?
A1: Yes! You can! You are welcome to make a Storage Basket order to check our superior quality and service!
Q2: Do you have any After-Sale Service?
A2: Yes! We have professional After-sales services items and if you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly, we must settle it ASAP.
Q3: Are you just trading co. or factory?
A3: We are professional manufacturer for Filtration, and We can support you with the most competitive pirce, unrivaled Quality and Services.
Q4: Where is your factory located? How can I visit you?
A4: Our factory is located in Anping County, Hebei Province of China. You can fly to Beijing City Airport directly, and we will pick you up. Welcome to visit our factory.
